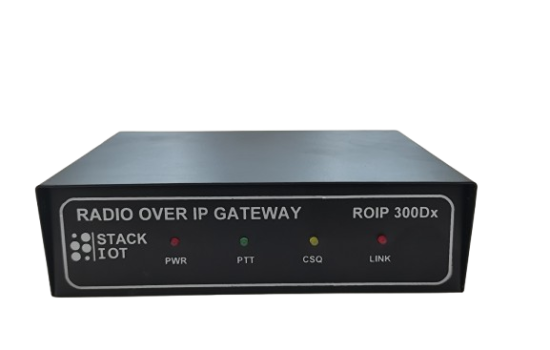

RoIP-300Dx
Radio Over IP (RoIP) Gateway is a powerful and flexible device that bridges the gap between traditional radio communication systems and IP networks. With RoIP, you can integrate your existing radio equipment with your IP-based communication infrastructure, enabling seamless and cost-effective communication across different locations, networks, and devices.
Radio over Internet Protocol uses standard techniques to transfer the analog audio signals used by Analog and Digital Land Mobile Radio/Repeater Systems, digitally over the LAN (or Internet). In addition to voice, RoIP also transfers signals that are specific to LMR applications,
RoIP is useful to connect multiple radio networks/ radio sites in different configurations such as below
Point to Point Direct Mode
Two Sites directly without any Server
Multi-Site Mode
Multiple Sites using RoIP Server Software
Monitoring Mode
Monitoring Single or Multiple Sites
with Recording
SPECIFICATIONS
| NETWORKS REQUIREMENTS | Payload: | 1kbps idle, 32Kbps(ADPCM)/ 64kbps(ALAW) active per user |
|---|---|---|
| Loading: | Minimum 128kbps Network Bandwidth | |
| Packet Loss: | 1% | |
| Packet Delay: | 100ms (Programmable depending upon net speed) | |
| Network Type: | Fully switched Ethernet, full duplex., | |
| GENERAL SPECIFICATIONS | Dimensions: | 1.75 x 5.9 x 4.3 inches (H x W x D) |
| Weight: | 360g | |
| Operation Temperature Range: | 10 to +55 Celsius | |
| Power: | 9V DC, 500mA | |
| Network Connection: | 10/100 Base-T Ethernet connection using RJ-45 | |
| RADIO SIGNALS USED | PTT | |
| Carrier Detect (CSQ) | ||
| Receive Audio (Speaker) | ||
| Transmit Audio (Mic) | ||
| OTHER FEATURES & SPECIFICATION | Wide Area Network Connectivity | |
| Auto-Connection on link or power reset | ||
| User Programmable IP Configuration | ||
| Flexible Port Address Configurability | ||
| Secured Communication by using Authentication Packets | ||
| Connection between Static IP Network and a Static/Dynamic IP Network | ||
| Dynamic Ip Connectivity with domain names | ||
| Web based Configuration Settings | ||
| Carrier/ Vox operated Mode (programmable) | ||
| Selectable CSQ or PTT priority feature | ||
| Adjustable PTT Delay depending upon net speed | ||
| Programmable PTT Time out Timer (TOT) | ||
| Multi-Connection Mode for Redundant Server Configuration | ||
| DTMF Decoder (for Dialing in RoIP Server Configuration) | ||
| Digital Radio Support (for RoIP Digital Server Configuration) |
